0.2L 0.5L 1L 2L 3L 5L 7L 10L 18L 20L Plastic Pet Drinking Water Fruit Juice Soft Drink Beverage Liquid Bottle Molding Blowing Machine for Sale
Description
Bottle blowing machine is a kind of equipment which can make plastic granules into hollow containers by blow
molding process. It is mainly used in beverage and food industry.
Advantages:
1. Excellent Mechanical Strength, impact-resisting, and non-craking.
2. Bottle mouth and thread are of precise measurement.
3. Plastic Medicine Bottle's safe thread can be molding directly.
4. The size and weight of the product can calculate and design clearly and meet the requirement of the design
without any deviation.
5. The surface of the bottle mouth, neck and the body is good luster and smoothness, the standard of bottle body
is unity.
6. The joint seam on the bottle body is smooth, no scrap rubber.
Features
1). Stable performance with advanced PLC.
2). Automatic preform conveyer to save human cost.
3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the
bottle shaping rate, increase the production.
4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.
5). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.
6). Introduce the FESTO air cylinder to avoid contamination and noise.
7). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
8). Strong clamping force with high pressure and double crank links to lock the mould.
9). Two ways of operating: automatic and manual.
10). Low cost,high efficiency,easy operation and maintenance etc, profited from the fully automatic technological process.
12). Ideal cooling system make the finished bottles without any flaws.
Main Components and Brands(can be customized)
No. | Description | Brand & Origin |
1 | PLC | Omron (Japan) |
2 | Operating Panel | KunlunTongtai (Sino-foreign joint venture) |
3 | Servo Motor (Driven the mold clamping system, stepping system, the stretching system, preform arraying) | Yaskawa (Japan) |
4 | Speed Reducer | NEUGART (Germany) |
5 | High Pressure Blowing Valve (pre-blowing, blowing and exhausting included) | PARKER(U.S.A.) |
6 | Cylinder | Rexroth(Germany) or FESTO (Germany) |
7 | Motion Valve | Parker (USA) |
8 | Control Button, Intermediate Relay | Omron (Japan) |
9 | AC Contactor, Thermal Relay | Schneider (France) |
10 | Intelligent Voltage Regulator | Omron (Japan) |
11 | Silicon Control | Semikron (Germany) |
12 | Infrared Tungsten Lamp Pipe | Lianggu(China) |
13 | Convertible Governor | Omron (Japan) |
Semi automatic:
Model | ZG-1000A |
Machine type | One heater+two blower |
Cavity | 2 +2 |
Capacity(500ml/bottle/h) | 1200-1600 |
Bottle volume | 0.2-2L |
Max diameter*height | ¢90*320 |
Weight | 1000kg |

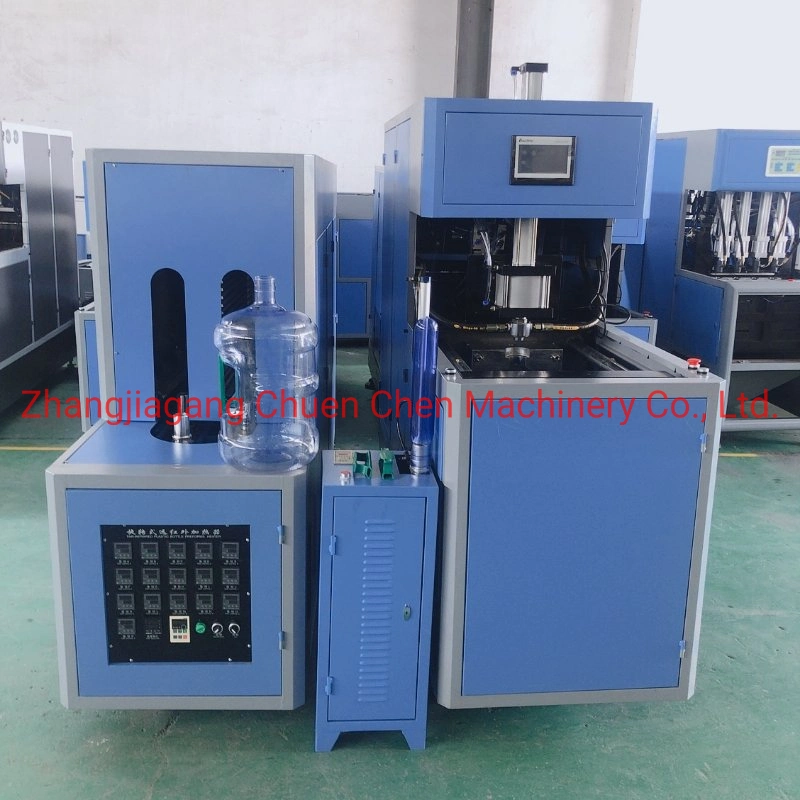

Model | ZG-8Y | ZG-8A | ZG-8B | ZG-9A | ZG-9B | ZG-12 |
Machine type | One heater+one blower | |||||
Cavity | 2 | 2 | 1 | 2 | 1 | 1 |
Bottle volume | 0.2-2L | 2-5L | 2-5L | 5-10L | 5-10L | 10-20L |
Capacity(500ml/bottle/h) | 600-800 | 500-700 | 300-500 | 500-700 | 200-400 | 60-120 |
Weight(KG) | 780 | 1050 | 980 | 1150 | 1000 | 1380 |
Production line
Machine video
PET Bottle Blow Molding Machine (Semi-automatic type) | How to adjust the bottle mould? | https://youtu.be/BIVkicV0TX8 |
How to install the bottle mould? | https://youtu.be/Qi9F6zYIBYE | |
How to center? | https://youtu.be/wJt3TJfg5DM | |
Hot juice bottle bottle blow molding machine | https://youtu.be/OB_Wtx_uI1k | |
3L PET bottle blowing machine with two cavity mould | https://youtu.be/yLEuPY9yPC4 | |
PET 5L bottle blow molding system | https://youtu.be/PC0fx7XdwB8 | |
5L PET bottle blow molding machine | https://youtu.be/l1pOkaoXoi8 | |
100BPH 5 gallon 20L bottle blow molding machine | https://youtu.be/vM5cP6X05ak | |
330ml-1500ml PET square bottle blowing machine(taken from client's factory) | https://youtu.be/obQDgCkkrIw | |
1000BPH Semi-automatic 2 cavity PET bottle making machine | https://youtu.be/z5ZZQrRA-oA | |
5 gallon bottle blow molding machine | https://youtu.be/Zyt5NZnpGBE |
PET Bottle Blow Molding Machine (Automatic type) | 3L-5L PET bottle blow molding machine | https://youtu.be/2sH7jEz7uVQ |
Automatic 6 cavity PET bottle blowing machine | https://youtu.be/FJmIgkq-jF4 | |
6000BPH 500ml PET bottle blow molding system | https://youtu.be/8BRn6jerciw | |
500ml Water bottle 6000BPH Blowing system | https://youtu.be/jNZ3LuJsr_4 | |
Automatic 4 cavity PET bottle blowing machine | https://youtu.be/P41dFkos5ug | |
6000BPH water bottle blow molding system(taken from client's factory) | https://youtu.be/jaI0iZDFr2w | |
100ml-1500ml plastic bottle blow molding system | https://youtu.be/oLCKcrpyzs0 | |
Chain delivering 6 cavity PET bottle stretching blow molding machine | https://youtu.be/oh4LHF6gQNc | |
Automatic 4 cavity PET bottle blow molding system | https://youtu.be/WHze0QWd0gs | |
Automatic 4 cavity square bottle blow molding machine | https://youtu.be/8gZ763Gvl8g | |
PET bottle 4 cavity stretch blow molding machine | https://youtu.be/74qSUB_qPsI | |
6 Cavity PET preform stretch blow molding system | https://youtu.be/HYy6gXCHY6o | |
PET jar blowing machine | https://youtu.be/BxRS2KerpU4 |
More production line
RO water treatment system:
We adopt different equipment to produce pure water, mineral water etc. The main equipment of RO Water Treatment Plant are silica sand filter, active carbon filter, sodium ion exchanger, hollow fiber, RO( reverse osmosis), UV sterilizer, precision filter, ozone generator, water tank etc.
It can effectively get rid of muddy organic matter, iron, manganese etc, reduce the hardness of the water to make all specifications of the water quality fully meet the state fresh water standard of fresh drink water.
Water filling machine:
1)It is adopted that direct connection between air conveyor and inlet starwheel instead of screw and conveyor chains, which is easier for bottle changing.
2)There is no need to adjust the height of equipment through neck holding tech for bottle transportation.And what is only to change some spare parts.
3)High speed filling line is of clamp transferring technology.Bottle shapes are more varied, and the working table inside the machine is more laconic.
4)By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier.
5)Specially designed stainless steel bottle clamp dose not contact the thread parts of the bottle neck, avoiding the second contamination.
6)High speed and large flow filling valve assures the high filling speed and exact fluid level.
7)Parts contact with the liquid are all of excellent stainless steel or food level plastic.The electric system is of international brand and achieves the national food sanitary standard.
Automatic sleeve labeling machine:
It is suitable for all kinds of drinks, such as fruit juice, tea beverage, dairy products, pure water, beer, sports drinks
and other food and beverage industries. It not only has high accuracy of labeling position,but also can highlight bottles
and perfect bottle-shaped after shrinkage.
Characteristic:
1. It is suitable for all kinds of drinks, such as fruit juice, tea beverage, dairy products, pure water, beer, sports drinks and
other food and beverage industries. It not only has high accuracy of labeling position, but also can highlight bottles andperfect bottle-shaped after shrinkage.
2. Highly stable mechanical structure,The whole machine adopts stainless steel protective frame cover and aluminum alloyrigid frame, which is stable and rust-free.
3. Flexible choice of all kinds of bottle type: round bottle, square bottle, elliptical bottle etc. can also choose the bottle mouthor body.
4. Unique synchronous cutter holder, within the scope of specifications, no replacement cutter holder. If the specifications need to be changed, it can be completed quickly in 5 minutes.
5. The shape is exquisite and beautiful, the overall structure is strong, and the use is more lightweight and flexible.
Automatic shrink wrapping packing machine:
Specially designed for beverages, pure water, fruit juice, wine and other drinks. With full automatic functions of bottle transfer and arrange, film wrapping, sealing and cutting, shrinkage, cooling and other qualities. It adopts the world's advanced film thermostatic sealing technology, and the sealing is firmly cleaned. The PLC program is used for automatic circulation control, and the performance is stable and reliable. Three-layer heat insulation, good heat preservation performance, fast heating, energy saving.
Package and shipping
How Can I Visit Your Factory?
A: Our factory location:Zhenbei Road, Leyu Town, Zhangjiagang City, Jiangsu Province, China.
Contact: MOB : 0086 13584426100 (Vickie Sun)
Nearest train station: Wuxi Station / Wuxi East Station
Nearest international airport: Shanghai Pudong International airport (PVG) / Shanghai Hongqiao International airport (SHA) / Wuxi Shuofang airport (if you are already in China)
Q: How to can appropriate offer?
A: Please inform us below conditions to get the appropriate offer quickly:
1, What kind of product you will produce? Water, juice, carbonated drink, beer, ketchup or another?
2, What is your production capacity per hour / per day / per month?
3, What is your bottle types and cap types? Glass bottle, PET bottle, Aluminum can or another? And How many bottle types that you have?
4, What is the final labeling and packing manner?
Contact us
Contact person: Vickie Sun MOB: 0086 13584426100
Web: ellisonpack.en.made-in-china.com / https://chuen-machine.en.made-in-china.com/
Youtube: https://ellisonpack.en.made-in-china.com
Facebook: https://ellisonpack.en.made-in-china.com
Main Products: Water treatment line, water/juice/carbonated water/beer/edible oil filling line, beverage processing machine (Juice and carbonated drink), CIP cleaning systems, PET bottle blow molding machines, fresh fruit processing machines etc.
OEM/ODM for clients
