Advantages
1.The work surface of internal cabinet is made of stainless steel, flat and smooth.
2.Outer casing is made of high-quality cold-rolled steel or stainless steel sheet.
3.Apply mechanical or electronic interlocking, effectively
4.prevent both sides of the door opening at the same time.
Material Instructions
1.Casing material: Outer casing is made of high-quality cold-rolled steel sheet or stainless steel plate; inner casing is made of stainless steel plate.
2.Inter locking way: Mechanical interlocking or electronic interlocking.
3.Intercom system: Bell type; between the door sides person communicate by phone.
4.Glass sash: Yellow sticker, anti-UV and anti-static
5.Sterilizer: UV sterilizer.
Application
Mainly used when goods should be delivered between clean areas or delivered from clean area to non-clean area, it is to minimize the contamination of clean room.

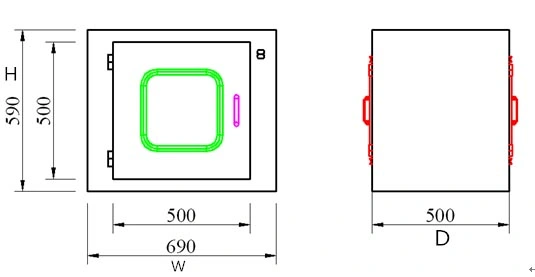

Structure Drawings
Note: 1. In case of specifications or structures changes, HEFIL will provide up-to-date data on website: hefilter.en.made-in-china.com.
2. HEFIL makes various of other models' HBX filter not listed in above table. Please consult with us if you need.
1.The work surface of internal cabinet is made of stainless steel, flat and smooth.
2.Outer casing is made of high-quality cold-rolled steel or stainless steel sheet.
3.Apply mechanical or electronic interlocking, effectively
4.prevent both sides of the door opening at the same time.
Material Instructions
1.Casing material: Outer casing is made of high-quality cold-rolled steel sheet or stainless steel plate; inner casing is made of stainless steel plate.
2.Inter locking way: Mechanical interlocking or electronic interlocking.
3.Intercom system: Bell type; between the door sides person communicate by phone.
4.Glass sash: Yellow sticker, anti-UV and anti-static
5.Sterilizer: UV sterilizer.
Application
Mainly used when goods should be delivered between clean areas or delivered from clean area to non-clean area, it is to minimize the contamination of clean room.
Structure Drawings
| Common Specifications | ||
| Model | External Dimensions | Working Area |
| (W×H×D) (mm) | (W×H×D) (mm) | |
| HBX-555 | 690×590×500 | 500×500×500 |
| HBX-556 | 690×590×600 | 500×500×600 |
| HBX-666 | 790×690×600 | 600×600×600 |
| HBX-667 | 790×690×700 | 600×600×700 |
| HBX-777 | 890×790×700 | 700×700×700 |
2. HEFIL makes various of other models' HBX filter not listed in above table. Please consult with us if you need.
