Fruit Juice water bottle filler drinking fountain as Verified Firm

Fruit Juice Water Bottle Filler Drinking Fountain as Verified Firm
Features
1). This machine operates easily, with compact structure, perfect control system and high level of automation.
2). The filling process of different types of bottles can be reached only by changing the star-wheel
3). The parts contacting with product is made of quality SUS, anti-corrosive, and easy to clean.
4). By adopting high speed filling valve, the liquid level is precise and no waste is to increase. That guarantees the demand of modern filling technology.

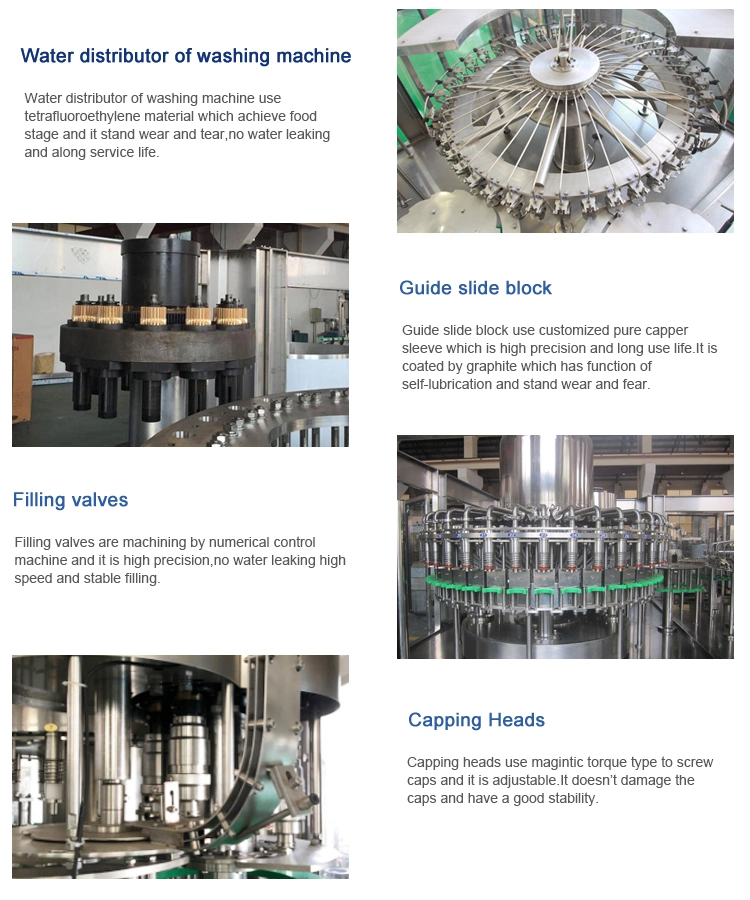

5). The capping head adopts constant torque magnetic device to guarantee capping quality, without any damage to the cap.
6). This machine has a highly efficient cap arranging system, perfect cap feeding and protection device.
7). By adopting overload protection system, it can ensure the protection of safety of the operator and equipment.
8). The operating system bears the function of production speed control, cap-shortage checking, production suspension when bottles-blocked, and counting of outputs.
9). The electric equipment and pneumatic parts are of brand name of the world.


Description
1). The raw water will be purified and sterilized after passing through the water treatment system, and will be stored in the purified water storage tank;
2). The juice will be prepared by the juice preparation system, the prepared juice is stored in the insulation tank (for heat preservation) temporarily;
3). Automatic heat resistance PET bottle blow molding machine is connected with the water filling machine by the Air conveyor;
4). Prepared juice will be pumped into the juice filling machine; At the same time, empty bottles pass through the rinsing, filling and capping 3-in-1 monoblock, the bottles will be rinsed, filled and capped.
5). Bottled water goes out from the water filling machine and will be transferred to the bottle over-turn sterilizing machine, the cap and the bottle mouth will be sterilized after passing through the sterilizing machine, then the bottles will be transferred to the bottle cooling machine;
6). The bottles are getting dried after passing through the blowing dryer, and the dried bottle will go to the labeling machine and PE film shrink wrapping machine;
7). The packed bottle water will come out from the PE film shrink wrapping machine.
Fruit Juice Water Bottle Filler Drinking Fountain as Verified Firm

Technical Parameters
Model

Washing

Heads

Filling

Heads

Capping

Heads

Capacity(bph)

based on 500ml

Power

(kW)

Diemension

(mm)

NC12-12-5C121253000~40004.32200*1600*2200
NC18-18-6C181866000~80004.82500*1750*2200
NC24-24-8C242489000~120005.62950*2150*2200
NC32-32-10C32321013000~150008.23720*2800*2200
NC40-40-12C40401216000~180009.54180*3200*2200
NC50-50-12C50501220000~2400011.04720*3500*2750
NC60-60-15C60601525000~3000013.06000*5454*2750

Fruit Juice Water Bottle Filler Drinking Fountain as Verified Firm




Bottle Producing System:

PET granules → Injection molding machine → PET preforms → Bottle blowing machine → PET bottle

Water Treatment System:

Raw water → Raw water pump → Quartz sand filter → Activated carbon filter → Sodium ion exchanger → Precision filter → Reverse osmosis filter → Ozone sterilizer → UV sterilizer→ Purified water tank

Filling & Packing System:

Bottle loader → Air conveyor → 3-in-1 filling machine → Outlet conveyor → Light checker → Air dryer → labeling machine → date printer → PE film packing machine → storage
Fruit Juice Water Bottle Filler Drinking Fountain as Verified Firm



Fruit Juice Water Bottle Filler Drinking Fountain as Verified Firm
Fruit Juice Water Bottle Filler Drinking Fountain as Verified Firm
Fruit Juice Water Bottle Filler Drinking Fountain as Verified Firm
Fruit Juice Water Bottle Filler Drinking Fountain as Verified Firm


Service Advantage:
1.Competitive price with good quality.
2.ODM/OEM service available.
3.In-time delivery guarantee.
4.One year warranty for whole machine.
5.One year spare parts free of charge.
6.Engineers available for installation and setting up.
7.Training of workers to handle operation.
