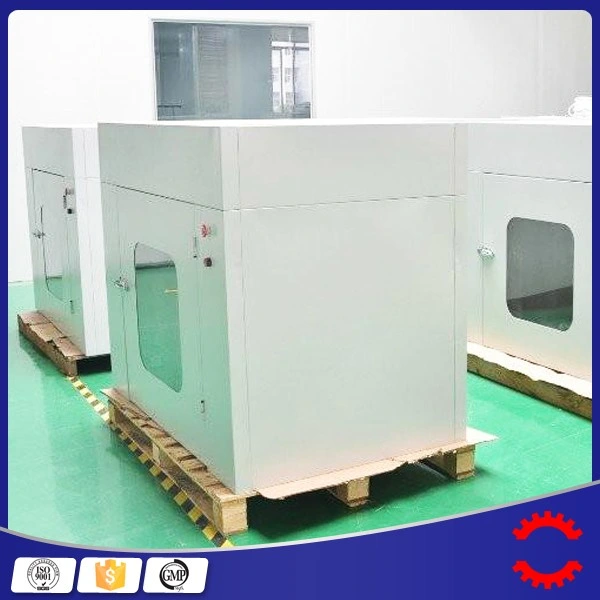

Pharmaceutical Cleanroom Air Supply Passing Box

Pass box is a kind of auxiliary equipment of clean room, used for cargo transfer between clean areas,

clean areas and unclean areas, they can reduce the times to open the door so as to ensure the cleanliness in the clean room.



Accroding to the working principle,there are three pass box:



Nomal pass box :

the pass box is interlock on the both doors,and can not be opened at one time.they can prevent air pollution.

Tip:this model pass box can't completely to stop dust entrance.



Air shower pass box:

Air shower pass box is high efficiency filter and fan built-in in normal pass box.

It is suitable for cargo transfer from clean areas to unclean areas or from low clean areas to high clean areas.



Laminar flow pass box:

It is also suitable for cargo transfer from clean areas to unclean areas or from low clean areas to high clean areas.

But it is mainly applied to the Biopharmaceutical industry,and through the laminar flow filter to form the class100 clean area in laminar flow pass box,thus effectively prevent the pollution into clean room.




SPB-666

SPB-888
NAMEW         D          H          WDH
OUTER SIZE800690115010008901350
INNER  SIZE600600600800800600
HEPA Filter4844849061061090
Blower800m³/h,400Pa1000m³/h,400Pa
ControlerLED digital control,Electromagnetic locking systemLED digital control,Electromagnetic locking system
Clean GradeISO5ISO5
Wind Speed+-0.45+-0.45
Noize65dB65dB
otherTelephone (optional)Telephone (optional)



Feature About Pass Box:

1.Choice of mechanical or electrical interlocked door.

2.The pass box out surface is fully made of stainless steel and treated with electrostatic spraying.

3.Double door is equipped with interlocked device, can not be opened at one time.

4.Double hollow toughened glass observation window.

5.The pass box is sealed by EVA.

6.With UV light .

7.Low Vibration and Noise.

8.Can be customized according to customer requirements.



Application:

LCM, CMOS Camera Module, Touch Play, Optical module, FILM, Biological Pharmacy, Packing, Food.
